Block clamps for fork lift trucks and front loaders matching any customer's needs.

---------------------------------------------------------------------------------------------------------------------------------

Block clamp CBLE.B

Independent side shift - 2 hydraulic functions

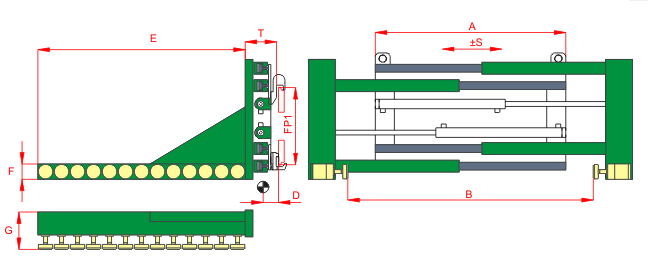

Type	Capacity as clamp kg/mm	FP1 ISO	A mm	B mm	S mm	T mm	D mm	F mm	G mm	E mm	Weight Q kg	Price EUR
CBLE-12	1250/500	II	1000	168-1288	100	175	320	80	196	1088	420	on req.
-01			1200	168-1488			310				435
CBLE.B-16	1600/500	II	1000	168-1288	100	185	330	80	196	1088	430
-01			1200	168-1488			315				450
CBLE.B-20	2000/500	II	1000	168-1288	100	185	315	80	196	1088	470
-01			1200	168-1488			320				490
CBLE.B-25	2500/500	II/III	1200	168-1488	100	208	310	80	201	1088	580
-01			1400	168-1688			320				595
CBLE.B-30	3000/500	III	1200	168-1488	100	218	360	80	201	1088	780
-01			1400	168-1688			365				805
CBLE.B-35	3500/600	IV	1400	168-1688	100/160	259	335	80	201	1088	960
-01			1600	168-1888			330				1050

Outher sizes at customer's order. No additional payment for design.

Additional valve for control of simultaneous movement of both forks + 120 eur.
