Harbour clamp

                               M a x i m a l     Ltd.
Fork clamps for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Harbour clamp CHFE

Independent side shift - 2 hydraulic functions

Type
Capacity on forks kg/mm

Capacity as clamp kg/mm

FP1 ISO

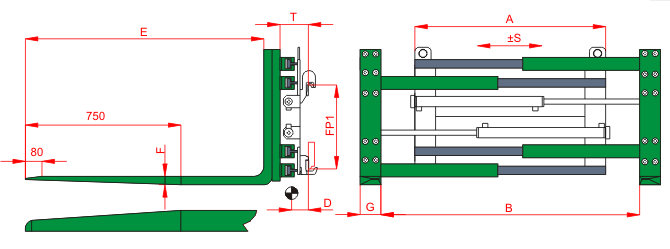

A mm Range B mm S mm T mm D mm F mm G mm E. mm Weight Q kg Price EUR

CHFE-16
2500/500 1600/500 II 800 300-1220 100 158 292 45 20 1150 380 on req.

-01
1000 300-1420 291 420

-02
1200 300-1620 288 440

CHFE-20
3500/500 2000/500 III 1200 300-1620 100 160 270 50 150 1150 520

-01
1400 300-1820 265 532

-02
1600 300-2020 264 570

Outher sizes at customer's order.

Additional valve for control of simultaneous movement of both forks + 120 eur.

Type	Capacity on forks kg/mm	Capacity as clamp kg/mm	FP1 ISO	A mm	Range B mm	S mm	T mm	D mm	F mm	G mm	E. mm	Weight Q kg	Price EUR
CHFE-16	2500/500	1600/500	II	800	300-1220	100	158	292	45	20	1150	380	on req.
-01				1000	300-1420			291				420
-02				1200	300-1620			288				440
CHFE-20	3500/500	2000/500	III	1200	300-1620	100	160	270	50	150	1150	520
-01				1400	300-1820			265				532
-02				1600	300-2020			264				570
