M a x i m a l Ltd.
Fork clamps for fork lift trucks and front loaders matching any customer's needs.
-------------------------------------------------------------------------------------------------------------------------
Fork clamp with turnable forks CTFE
Independent side shift - 2 hydraulic functions

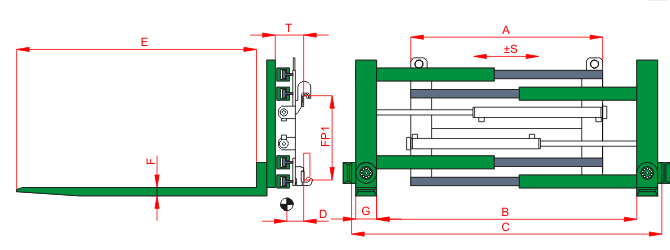

Type Capacity on forks kg/mm
Capacity as clamp kg/mm
FP1
ISO
A
mm
B
mm
C
mm
S
mm
T
mm
D
mm
F
mm
G
mm
E
mm
Weight kg Price
EUR
CTFE-07 1500/500 700/500 II 800 300-1220 540-1460 100 223 260 40 100 1150 360 on req. 1000 300-1420 540-1660 258 370 1200 300-1620 540-1860 261 380 CTFE-16 2500/500 1250/500 II 800 300-1220 610-1530 100 235 280 40 140 1150 390 1000 300-1420 610-1730 270 405 1200 300-1620 610-1930 275 425 2500/500 1600/500 II 800 300-1220 656-1576 100 235 290 50 150 1150 410 1000 300-1420 656-1776 291 430 1200 300-1620 656-1976 288 450 3000/500 2000/500 II/III 1000 300-1420 656-1776 100 235 315 50 150 1150 480 1200 300-1620 656-1976 320 520 1400 300-1820 656-2176 325 550 3500/500 2500/500 III 1200 300-1620 656-1956 100 260 330 60 150 1150 590 1400 300-1820 656-2156 335 620 1600 300-2020 656-2356 340 660 Outher sizes at customer's order. No additional payment for design.
Additional valve for control of simultaneous movement of both forks + 120 eur.
