M a x i m a l     Ltd.

Bale clamps for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Bale clamp CBE

Independent side shift - 2 hydraulic functions

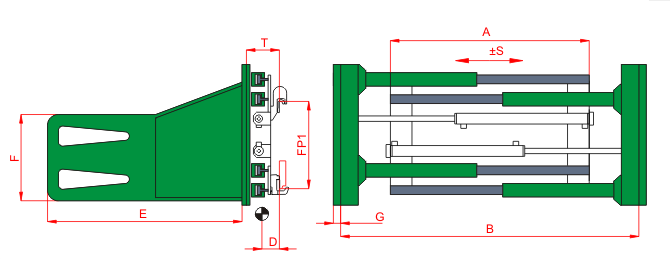

Type	Capacity kg/mm	FP1 ISO	A mm	B mm	S mm	T mm	D mm	G mm	F mm	E mm	Weight kg	Price EUR
CBE-07	700/500	II	800	440-1360	100	157	235	30	400	900	310	on req.
--01			1000	440-1560			240				330
-02			1200	440-1760			245				360
CBE-10	1250/500	II	800	468-1388	100	157	230	36	400	900	365
-01			1000	468-1588			235				380
-02			1200	468-1788			234				395
CBE--16	1600/500	II	1000	468-1388	100	169	240	36	400	900	400
-01			1200	468-1588			250				420
-02			1400	468-1788			260				430
CBE-20	2000/500	II/III	1000	456-1576	100	174	247	42	400	900	460
-01			1200	456-1776			249				480
-02			1400	456-1976			248				505
CBE-25	2500/500	III	1000	510-1550	100	193	315	46	500	1000	605
-01			1200	510-1750			320				625
-02			1400	510-1950			340				650
CBE-30	3000/500	III	1200	508-1828	100	203	280	46	500	1000	690
-01			1400	508-2028			290				705
-02			1600	508-2228			295				730
CBE-35	3500/500	III/IV	1200	500-1820	100	229	310	50	500	1200	850
-01			1400	500-2020			320				870
-02			1600	500-2220			340				920
CBE-40	4000/600	IV	1200	496-1816	100	249	360	52	500	1400	1390
-01			1400	496-2016			380				1480
-02			1600	496-2216			370				1520
CBE-50	5000/600	IV	1200	596-1916	100/160	269	360	52	500	1400	1400
-01			1400	596-2116			370				1450
-02			1600	596-2316			380				1520
CBE-60	6000/800	IV	1600	576-2296	100/160	290	410	62	500	1600	1950
-01			1800	576-2496			430				2150
-02			2000	576-2696			390				2460

Outher sizes at customer's order. No additional price for design

.Additional valve for control of simultaneous movement of both pads + 120 eur..
