M a x i m a l     Ltd.

Fork positioners for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Fork positioner POZ2

valve block sideshift - depends on opening range

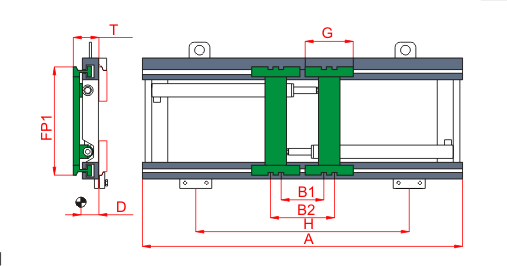

Type	Capacity kg/mm	FP1 ISO	A mm	B1 mm	T mm	D mm	G mm	B2 mm	H mm	Weight kg	Price EUR
POZ2-16	1600/500	2	1200	160-1020	96	40	180	240-1100	800	102	on req.
-01			1400	160-1220				240-1300	900	110
-02			1600	160-1420				240-1500	1000	116
POZ2-25	2500/500	2	1200	160-1020	96	43	180	240-1100	900	110
-01			1400	160-1220				240-1300	1000	121
-02			1600	160-1420				240-1500	1000	128
POZ2-35	3500/500	3	1400	260-1220	128	42	240	450-1190	800	180
-01			1600	260-1420				450-1390	900	190
-02			1800	260-1620				450-1590	1000	205
POZ2-40	4000/500	3	1200	260-1020	128	44	240	450-990	800	175
-01		4	1600	260-1200	150	43	340	450-1390	1000	205
-02			1800	260-1400				450-1590	1200	214
POZ2-60	6000/600	4	1600	260-1200	150	44	340	450-1390	1000	320
-01			1800	260-1400				450-1590	1200	350
POZ2-80	8000/600	4	1600	260-1200	150	45	340	450-1390	1000	330
-01			1800	260-1400				450-1590	1200	350

Outher sizes at customer's order. No additional price for design.

Additional valve for control of simultaneous movement of both pads + 120 eur..
