M a x i m a l     Ltd.

Fork positioners for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Fork positioner POZ4

independent side shift - 2 hydraulic functions

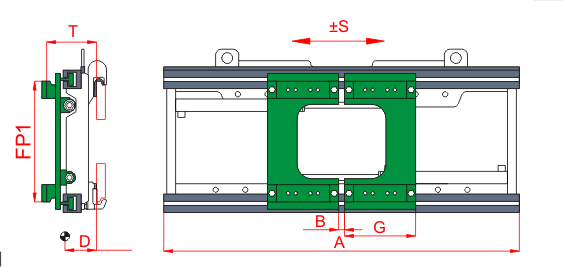

Type

Capacity

kg/mm

FP1

ISO

A

mm

B

mm

S

mm

T

mm

D

mm

G

mm

Weight

kg

Price

EUR
POZ4-16 1600/500 2 1200 20-720 100 168 70 240 155 on req.
-01
 1400 20-920 68 175
-02
 1600 20-1120 69 185
POZ4-25
2500/500
 2 1200 20-720 100 168 70 240 165
-01
 1400 20-920   68   185
-02
 1600 20-1120   69   195
POZ4-35 3500/500 3/4 1200 20-720 100 183 75 240 260
-01
 1400 20-920 74 270
-02
 1600 20-1120 77 290
POZ4-40 4000/500 3/4 1200 20-720 100 222 74 240 270
-01
 1400 20-920   75   285
-02
 1600 20-1120   76   300
POZ4-60 6000/600 4 1400 20-920 100(160) 222 70 240 420
-01
     1600 20-1120     72   440
POZ4-80 8000/600 4 1400 20-920 100(160) 222 75 240 490
-01
     1600 20-1120   74   530
Outher sizes at customer's order. No additional price for design.
Additional valve for control of simultaneous movement of both pads + 120 eur..
