M a x i m a l     Ltd.

Fork positioners for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Fork positioner POZ9

Independant side shift. 2 hydraulic functions

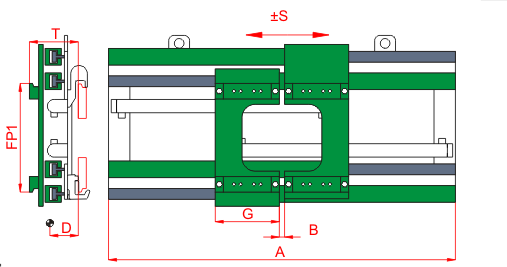

Type	Capacity kg/mm	FP1 ISO	A mm	B mm	S mm	T mm	D mm	G mm	Weight kg	Price EUR
POZ9-16	1600/500	2	800	20-940	100	183	93	240	210	on req.
			1000	20-1140			91		225
			1200	20-1340			91		236
			1300	20-1440			90		248
POZ9-25	2500/500	2	800	20-940	100	195	95	240	240
			1000	20-1140			94		265
			1200	20-1340			95		274
			1300	20-1440			93		290
POZ9-35	3500/500	3	1000	20-1140	100	221	98	240	390
			1200	20-1340			97		405
			1400	20-1540			96		470
			1600	20-1640			96		520
POZ9-40	4000/500	3	1200	20-1340	100	221	105	240	448
		4	1400	20-1540			104		460
			1600	20-1640			103		498
POZ9-60	6000/600	4	1400	20-1540	100	262	120	240	660
			1600	20-1640	(160)		119		680
POZ9-80	8000/600	4	1400	20-1540	100	268	136	240	810
			1600	20-1640	(160)		135		920

Outher sizes at customer's order. No additional price for design.

Additional valve for control of simultaneous movement of both pads + 120 eur..
