M a x i m a l     Ltd.

Rotating roll clamps for fork lift trucks and front loaders matching any customer's needs.

-------------------------------------------------------------------------------------------------------------------------

Rotating roll clamp-180 - short arm adjustable - split pads RRCB-C

2 hydraulic functions. 180 rotation

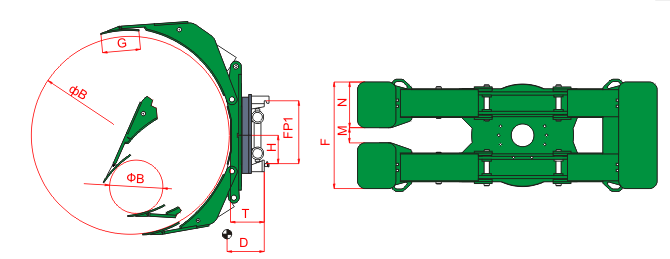

Type	Capacity kg	FP1 ISO	B mm	T mm	D mm	H mm	F mm	G mm	M mm	N mm	Torque Nmm	Weight kg	Price EUR
RRCB-C-07	700	2	490-1300	222	210	183	700	250	100	300	4600	530
-01			560-1400									550
-02			560-1600									570
RRCB-C-10	1250	2	490-1300	222	230	183	700	250	100	300	6300	570
-01			560-1400									590
-02			560-1600									605
RRCB-C-16	1600	2	490-1300	222	255	183	1000	250	100	420	6300	580
-01			560-1400									620
-02			560-1600									675
RRCB-C-20	2000	2/3	490-1300	240	250	284	1000	250	180	420	8400	690
-01			560-1400									715
-02			560-1600									745
RRCB-C-25	2500	3	490-1300	260	230	284	1000	250	180	420	8400	720
-01			560-1400									738
-02			560-1600									770

Outher sizes at customer's order. No additional price for design.

Additional valve for control of simultaneous movement of both pads + 180 eur.
