M a x i m a l     Ltd.

Rotating bale clamps for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

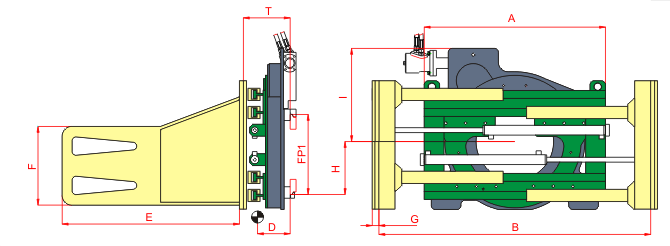

Rotating bale clamp RBCE

360 ^orotation . 2 hydraulic functions















Type	Capacity kg/mm	FP1 ISO	A mm	B mm	S mm	T mm	D mm	G mm	F mm	E mm	H mm	I mm	Torque Nm	Weight kg	Price EUR
RBCE-07	700/500	II	800	440-1360	100	242	246	30	400	900	269	454	4600	460	on req.
--01			1000	440-1560			244							485
-02			1200	440-1760			243							490
RBCE-10	1250/500	II	800	468-1388	100	258	260	36	400	900	269	486	6300	480
-01			1000	468-1588			255							495
-02			1200	468-1788			253							506
RBCE-16	1600/500	II	1000	468-1388	100	270	260	36	400	900	269	486	6300	490
-01			1200	468-1588			254							510
-02			1400	468-1788			253							520
RBCE-20	2000/500	II/III	1000	456-1576	100	276	255	42	400	900	329	522	8400	560
-01			1200	456-1776			253							580
-02			1400	456-1976			248							595
RBCE-25	2500/500	III	1000	510-1550	100	307	315	46	500	1000	375	631	14000	930
-01			1200	510-1750			317							950
-02			1400	510-1950			316							965
RBCE-30	3000/500	III	1200	508-1828	100	317	301	46	500	1000	375	631	14000	1050
-01			1400	508-2028			295							1080
-02			1600	508-2228			295							1090
RBCE-35	3500/500	III/IV	1200	500-1820	100	343	310	50	500	1200	375	631	14000	1150
-01			1400	500-2020			306							1180
-02			1600	500-2220			3305							1210
RBCE-40	4000/600	IV	1200	496-1816	100	400	325	52	500	1400	375	688	23000	1390
-01			1400	496-2016			323							1480
-02			1600	496-2216			322							1520

Outher sizes at customer's order. No additional price for design

.Additional valve for control of simultaneous movement of both pads + 180 eur..
