M a x i m a l     Ltd.

Rotating pallet turnover clamps for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Rotating palette turnover clamp RPCE

360^o rotation. 2 hydraulic functions

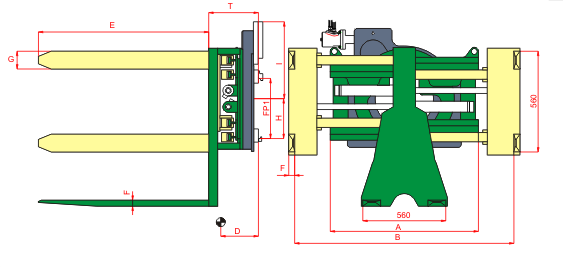

Type	Capacity on forks kg/mm	Capacity as clamp kg/mm	FP1 ISO	A mm	B mm	T mm	D mm	G mm	F mm	E mm	H mm	I mm	Torque Nm	Weight kg	Price EUR
RPCE-10	2000/500	1000/500	2	1200	600-1770	265	440	100	40	1150	269	454	4600	690	on req.
RPCE-16	2500/500	1600/500	2	1000	600-1630	292	450	120	45	1150	269	486	6300	730
-01				1200	600-1770		445							750
RPCE-20	3000/500	2000/500	2/3	1200	600-1760	296	442	120	50	1150	329	522	8400	920
-01				1400	600-1960		441							935
-02				1600	600-2160		440							945
RPCE-25	3500/500	2500/500	3	1200	600-1820	327	425	150	50	1150	375	631	14000	1160
-01				1400	600-2020		428							1190
-02				1600	600-2220		425							1240
RPCE-35	5000/500	3000/500	4	1200	600-1810	350	405	150	60	1150	375	631	14000	1250
-01				1400	600-2010		403							1280
-02				1600	600-2210		400							1305

Outher sizes at customer's order. No additional price for design.

Additional valve for control  of simultaneous movement of both pads + 180 eur.
