M a x i m a l     Ltd.

Rotating roll clamps for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

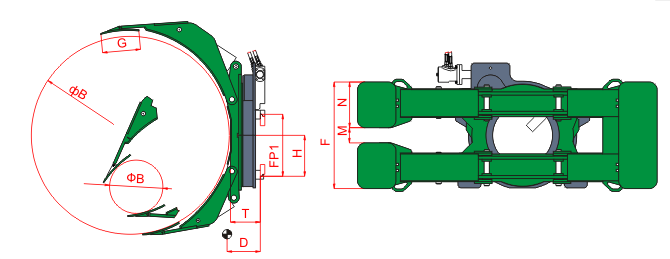

Rotating roll clamp - 360^o-short arm adjustable- split pads - RRCE-C

2 hydraulic functions . 360^o rotation

















Type	Capacity kg/mm	FP1 ISO	B mm	T mm	D mm	G mm	F mm	H mm	M mm	N mm	Torque Nm	Weight kg	Price EUR
RRCE-C-07	700	2	490-1300	195	230	250	700	269	100	300	6300	330	on req.
--01			560-1400		320							355
-02			560-1600		340							390
RRCE-C-10	1250	2	490-1300	195	285	250	700	269	100	300	6300	380
-01			560-1400		282							398
-02			560-1600		280							415
RRCE-C-16	1600	2	490-1300	205	302	250	700	329	100	300	8400	420
-01			560-1400		301							470
-02			560-1600		301							495
RRCE-C-20	2000	2/3	490-1300	205	305	250	1000	329	180	420	8400	605
-01			560-1400		303							625
-02			560-1600		302							647
RRCE-C-25	2500	3	490-1300	235	312	250	1000	375	180	420	14000	760
-01			560-1400		311							785
-02			560-1600		310							808
RRCE-C-30	3000	3	490-1300	235	315	1000	500	375	180	420	14000	770
-01			560-1400		314							790
-02			560-1600		316							815
RRCE-C-35	3500	3/4	490-1300	235	325	1000	500	375	180	420	14000	960
-01			560-1400		320							990
-02			560-1600		318							1050
RRCE-C-40	4000	4	490-1300	350	390	1200	500	375	200	500	23000	1280
-01			560-1400		388							1350
-02			560-1600		388							1450
RRCE-C-50	5000	4	560-1400	350	425	1200	500	375	200	500	23000	1720
-01			560-1600		415							1810
-02			680-2000		412							1900

Side shift at request. Short arm adjustable at 45^o

Outher sizes at customer's order. No additional price for design

Additional valve for control of simultaneous movement of both pads + 180 eur.
