M a x i m a l     Ltd.

Rotating roll clamps for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Rotating roll clamp -360^o- short arm fixed - continious or split pads RRCE-A

2 hydraulic functions . 360^o rotation

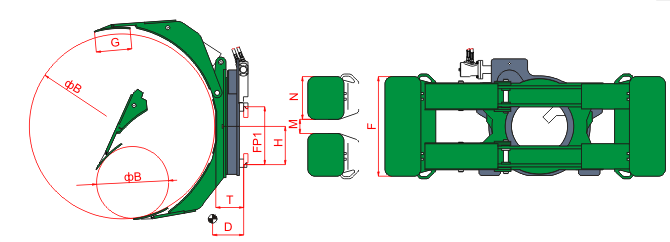

Type	Capacity kg/mm	FP1 ISO	B mm	T mm	D mm	G mm	F mm	H mm	M mm	N mm	Torque Nm	Weight kg	Price EUR
RRCE-A-07	700	2	490-1300	205	230	250	700	269	100	300	6300	315	on req.
--01			560-1400		225							335
-02			560-1600		224							365
RRCE-A-10	1250	2	490-1300	205	240	250	700	269	100	300	6300	365
-01			560-1400		235							378
-02			560-1600		230							398
RRCE-A-16	1600	2	490-1300	215	290	250	700	329	100	300	8400	400
-01			560-1400		285							450
-02			560-1600		283							480
RRCE-A-20	2000	2/3	490-1300	235	310	250	1000	329	160	420	8400	580
-01			560-1400		340							605
-02			560-1600		350							625
RRCE-A-25	2500	3	490-1300	260	330	250	1000	375	160	420	14000	740
-01			560-1400		325							765
-02			560-1600		323							790
RRCE-A-30	3000	3	490-1300	260	335	300	1000	375	160	420	14000	710
-01			560-1400		340							730
-02			560-1600		345							740
RRCE-A-35	3500	3/4	490-1300	260	340	300	1000	375	160	420	14000	940
-01			560-1400		345							960
-02			560-1600		345							970
RRCE-A-40	4000	4	490-1300	298	355	400	1200	375	200	500	23000	1050
-01			560-1400		349							1160
-02			560-1600		348							1250
RRCE-A-50	5000	4	560-1400	390	395	400	1200	375	200	500	23000	1250
-01			560-1600		393							1380
-02			680-2000		390							1540

All versions with split contact pads should be indicated with SP (for example RRCE-50 SP) . Side shift at request.

Outher sizes at customer's order. No additional price for design

.For split pads type additional valve for control of simultaneous movement of both pads + 180 eur.
