M a x i m a l     Ltd.

Rotators for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

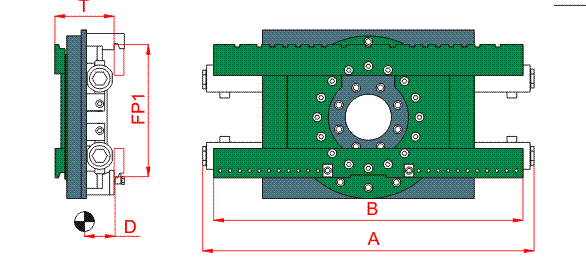

Rotator RO18

one hydraulic function

















Type

Capacity

kg/mm

FP1

ISO

A

mm

B

mm

T

mm

D

mm

Torque

Nm

Weight

kg

Price

EUR
RO18-10
1000/500
2
1050
850
182
92
3500
190
 on req.
RO18-16
 1600/500 2 1050 850 182 95 4500 203
RO18-20
2000/500
2
1050
950
192
112
6300
203

RO18-25
2500/500
3
1200
1050
198
114
7800
240

RO18-30
 3000/500 3 1200 1050 210 115 8400 302

Outher sizes at customer's order. No additional payment for design.
