Rotators for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Rotator RO36

one hydraulic function

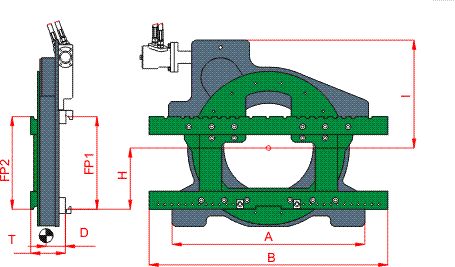

Type	Capacity kg/mm	FP1 ISO	A mm	B mm	H mm	I mm	T mm	D mm	Torque Nm	Weight kg	Price EUR
RO36-16	1500/500	2	880	1020	269	454	155	103	4600	190	on req.
RO36-20	2000/500	2	880	1020	269	486	171	112	6300	203
RO36-30	3000/500	3	920	1050	329	522	182	114	8400	310
-01	3000/500	3	920	1050	329	485	157	120	8400	340
-02	3000/500	3	920	1050	299	536	174	122	8400	343
RO36-50	5000/600	4	1280	1300	375	631	189	132	14000	538
-01	5000/600	4	1280	1300	375	575	149	135	14000	580
RO36-65	6500/600	4	1280	1300	375	688	246	140	23000	750
-01	6500/600	4	1280	1300	375	614	202	150	23000	820
RO36-80	8000/900	4	1360	1400	410	620	300	170	22000	1200

Outher sizes at customer's order. No additional payment for design.
