M a x i m a l     Ltd.

Rotators for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

Rotator for fish industry RO36FI

one hydraulic function , galvinized construction, silicon sealed holes.

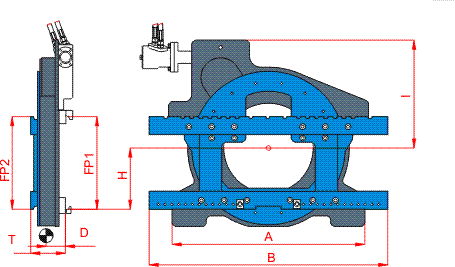

Type	Capacity kg/mm	FP1 ISO	A mm	B mm	H mm	I mm	T mm	D mm	Torque Nm	Weight kg	Price EUR
RO36FI-16	1500/500	2	880	1020	269	454	155	103	4800	190	on req.
RO36FI-20	2000/500	2	880	1020	269	486	171	112	6300	203
RO36FI-30	3000/500	3	920	1050	329	522	182	114	8400	310

Outher sizes at customer's order. No additional payment for design.
