Rotators for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------------------------

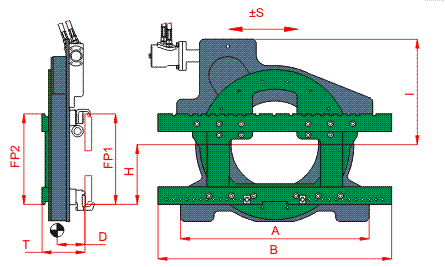

Rotator with side shift RO36S

independent side shift. two hydraulic functions

















Type	Capacity kg/mm	FP1 ISO	S mm	A mm	B mm	H mm	I mm	T mm	D mm	Totque Nm	Weight kg	Price EUR
RO36S-16	1500/500	2	100	880	1020	269	454	193	117	4800	205	on req.
RO36S-20	2000/500	2	100	880	1020	269	486	193	119	6300	218
RO36S-30	3000/500	3	100	920	1050	329	522	205	124	8400	330
-01						329	485	198	132		360
-02						299	536	203	131		368
RO36S-50	5000/600	4	100	1280	1300	375	631	238	141	14000	565
-01							575	219	143		605
RO36S-65	6500/600	4	160	1280	1300	375	688	280	149	23000	780
-01							614	258	157		855
RO36S-80	8000/900	4	160	1360	1400	410	620	320	178	22000	1260

Outher sizes at customer's order. No additional payment for design.
