Rotators for fork lift trucks and front loaders matching any customer's needs.

-------------------------------------------------------------------------------------------------------------------------

Rotator for fish industry RO36FIS

independent side shift. two hydraulic functions , galvanized construction, silicon sealed holes

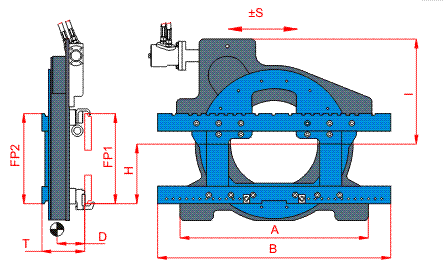

Type	Capacity kg/mm	FP1 ISO	S mm	A mm	B mm	E mm	F mm	T mm	D mm	Torque Nm	Weight kg	Price EUR
RO36FIS-16	1500/500	2	100	880	1020	269	454	193	117	4800	205	on req.
RO36FIS-20	2000/500	2	100	880	1020	269	486	193	119	6300	218
RO36FIS-30	3000/500	3	100	920	1050	329	522	205	124	8400	330

Outher sizes at customer's order. No additional payment for design.
