M a x i m a l     Ltd.

Side shifters for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------

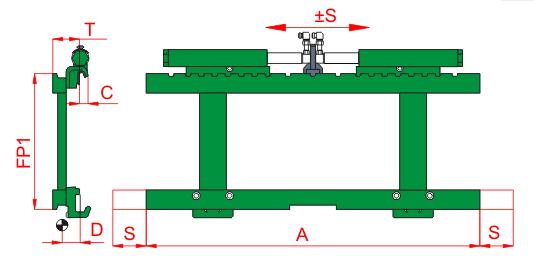

Side shifter IZR-V2

One hydraulic function. Lower brackets of roller type + slow down effect at the end of stroke













Type	Capacity kg/mm	FP1 ISO	S mm	A mm	T mm	C mm	D mm	Weight kg	Price EUR
IZR-V2-25	2500/500	II	100	1000	80	26	30	64	on req.
				1200				74
			160	1000				75
				1200				84
IZR-V2-35	3500/500	III	100	1200	95	34	50	95
				1400				103
			160	1200				105
				1400				113

Other sizes at customer's order. No additional payment for design.
