M a x i m a l     Ltd.

Triple side shifters for fork lift trucks and front loaders matching any customer's needs.

--------------------------------------------------------------------------------------------------------

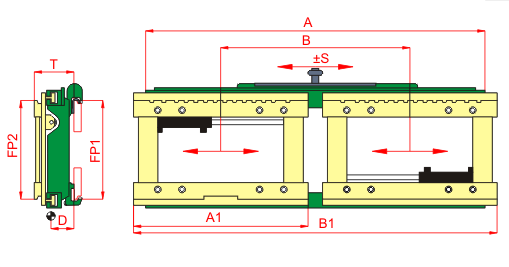

Triple side shifter IZR-T

Independent sideshift. Two or three hydraulic functions.



















Type

Capacity per carriage kg/mm

FP1

ISO

FP2

ISO

A

mm

A1

mm

B

mm

B1

mm

S

mm

T

mm

D

mm

Weight

kg

Price

EUR
IZR-T_25
1250/600
II
II
1400
720
 780-1220
1500-1720
100
163
85
290
 on req.
IZR-T-35
1750/600
III
II
1400
720
 780-1220
1500-1720
100
163
92
440

IZR-T-40 2000/500 IV III 1600 980 1000-1600 1980-2280 100 185 98 550

Other sizes at customer's order. No additional payment for design.
